So to get best accuracy, I carefully removed
the insulation (using an absolute minimum
of force to avoid squashing it) then, with a
tiny amount of solder and liquid flux, tinned
the wire so solder flowed into the strands but
contributed nothing to overall diameter. Using
a pair of vernier callipers the two dimensions
of my cable were D = 2.18mm, d = 1.1mm.
The oft-quoted equation for twin line is
Zo = 276 * vf * LOG(2D/d) but this is only
accurate for wide spaced line where D >> d.
Here the more accurate equation Zo = 120
* vf * COSH-1(D/d) has to be used. Now we
need to know the velocity factor to get Zo. So
again, guesswork or looking at tables is the
only way.
For my twin feeder, knowing vf = 0.7:
Zo = 120 x 0.7 x COSH-1 (2.18mm /
1.1mm) = 105Ω (which for my mechanical
engineering / measurement skills is pretty
impressive!)
(COSH-1, otherwise known as ARC-COSH,
is available on many scientific calculators by
pressing something like INV-HYP-COS, or
ARC-HYP-COS or HYP-COS-1. In the Microsoft
Excel spreadsheet, it is the obtained using the
function ‘ACOSH’).
So the twin feed is nominally 100Ω as
sold by many suppliers. Not what I wanted,
but useful to have on the shelf.
WEBSEARCH
[1] Clicklock, locking a soundcard to 1 PPS GPS
signals:

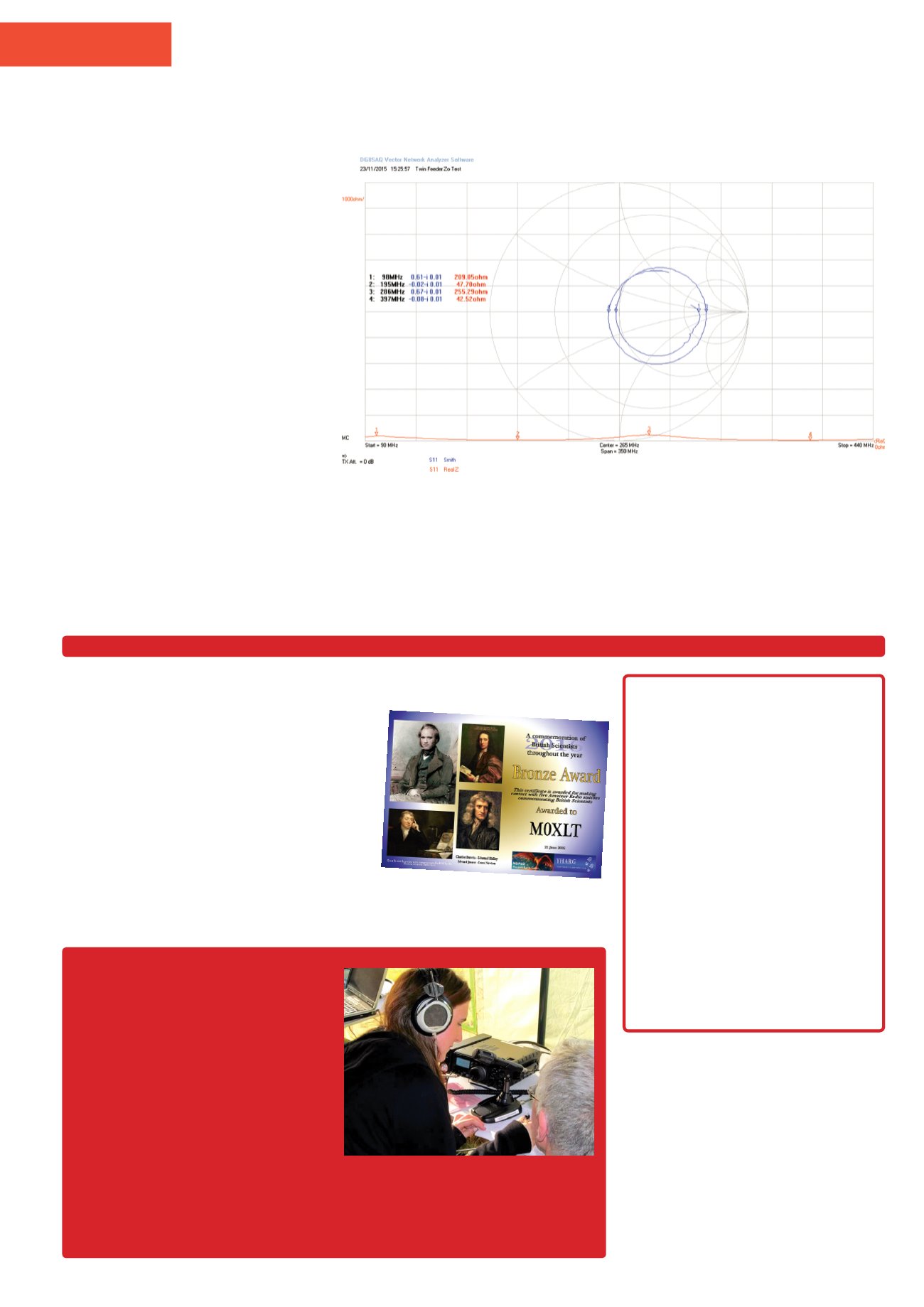

FIGURE 2: Network analyser plot of a 513mm test piece of twin feeder of unknown characteristic
impedance terminated in a 50Ω load.
